Desktop Gaming Motherboard - LGA1700, 2 x DDR4, PCIE 4.0 & 3.0 x 16,

Product information:
Mainboard model: South China H610M-K mainboard
Chipset: IntelH610 series chipset
CPU pin: supports LGA1700 platform processors and Intel12/13/14 generation Core processors.
Memory slots: 2 DDR4 memory slots
Memory Standard: supports dual-channel DDR4/2933/2666/2133MHz memory (supports XMP depending on CPU) up to 64GB
Storage interface: 3 SATA3.0 6Gbps hard disk interfaces
Expansion Slot: 1 PCI Express4.0 x16 slot, 1 PCI Express3.0 x1 slot
Expansion interface: 1 M.2 2280 NVME PCIE X4 3.0 32Gb/s ,1 M.2 WIFI support CNVi protocol
On-board sound card: Ruiqi high fidelity audio ALC897
On-board Nic: Ruiqi Gigabit Nic RTL8111H
Power Interface: 24PIN 8PIN
Fan pin: 1 CPU_FAN pin, 2 SYS_FAN pin
Number of power supply phases: 6-phase power supply
PCB layers: 4 layers
Motherboard specification: 215 * 165MM M-ATX plate type
Rear panel interface: 2 USB3.2 5Gbps ,4 USB2.0 480Mbps, 1 HDMI 2.0 interface
1 VGA interface, 1 RJ45 network interface, 1 3-hole audio interface
Front panel interface: 1 group USB2.0 480Mbps pin, 1 set USB3.2 5Gbps pin, 1 set of front audio pin, 1 set of Debug debugging lights pin, 1 set of CMOS pin, 1 set of buzzer, 1 set of TPM 12-1 pin
1 group of CMOS pin, 1 group of buzzer pin, 1 group of boot restart pin
Support system: Windows10 Windows11 support incoming call startup/scheduled startup/network wake-up/Nic startup
BIOS:AMI UEFI BIOS graphics

Packing list:
1 SATA hard drive data cable, 1 product manual, 1 motherboard blank, 1 motherboard

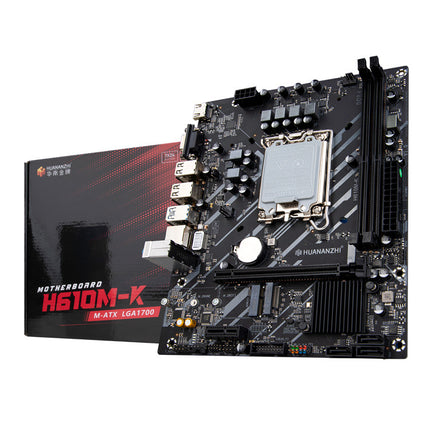

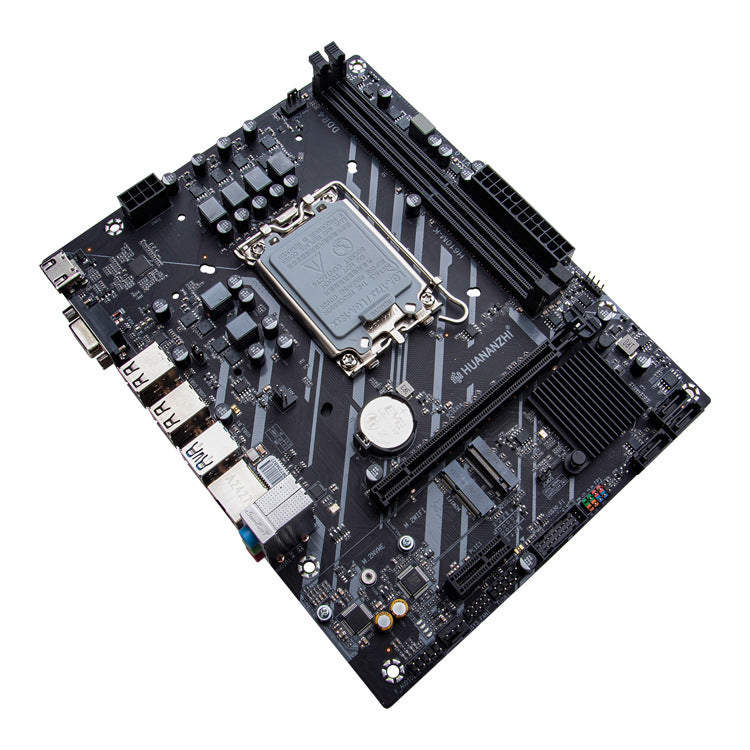

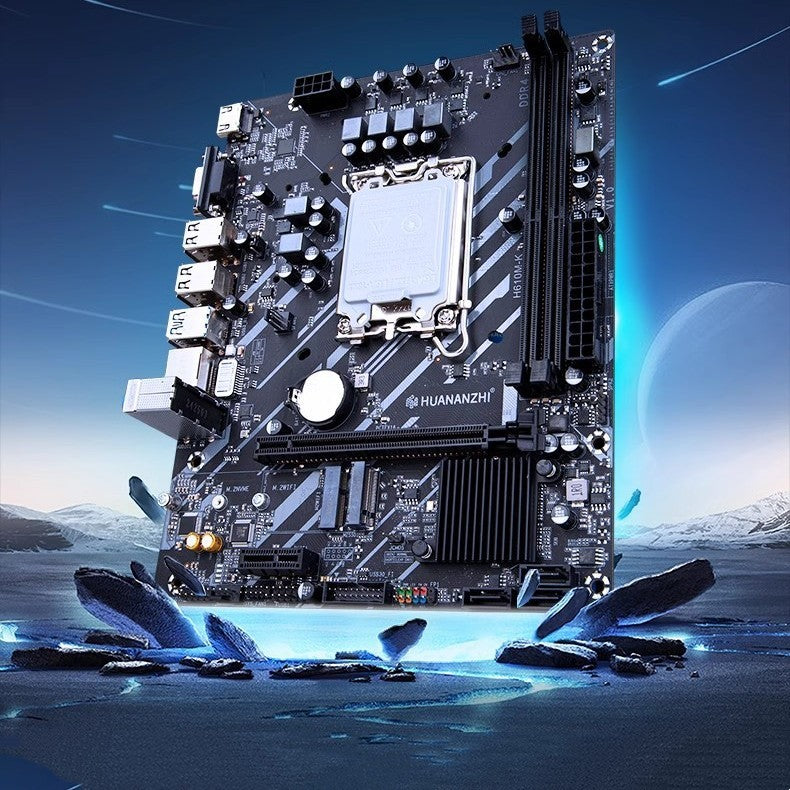

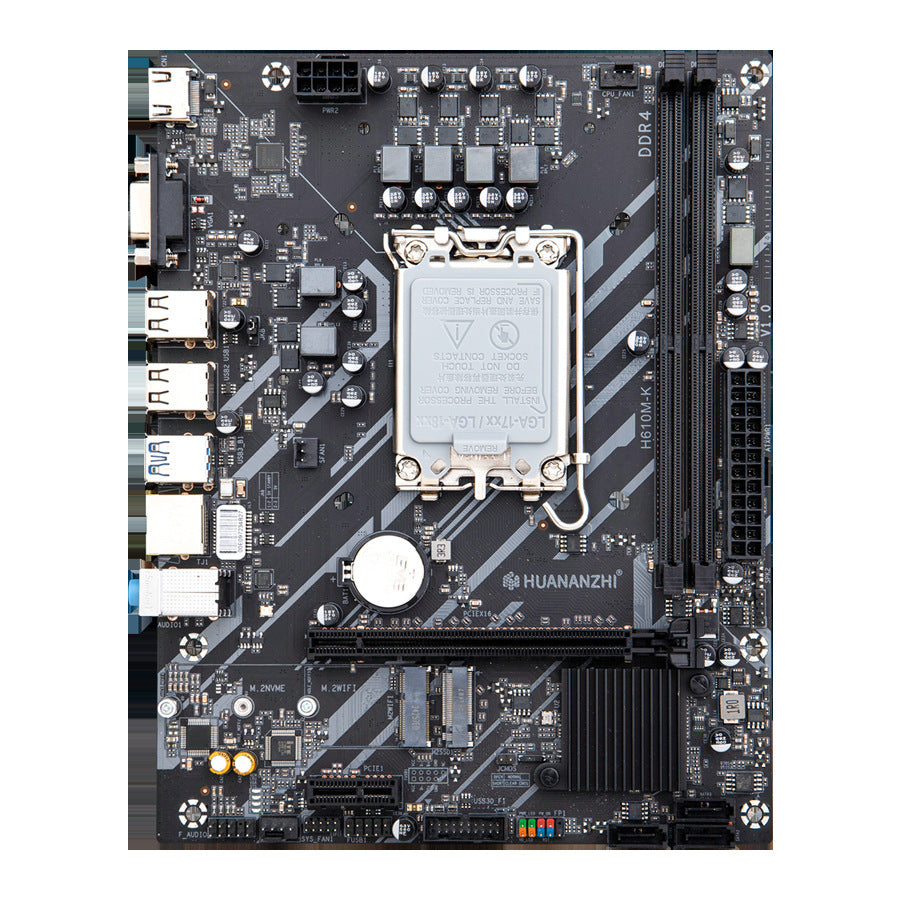

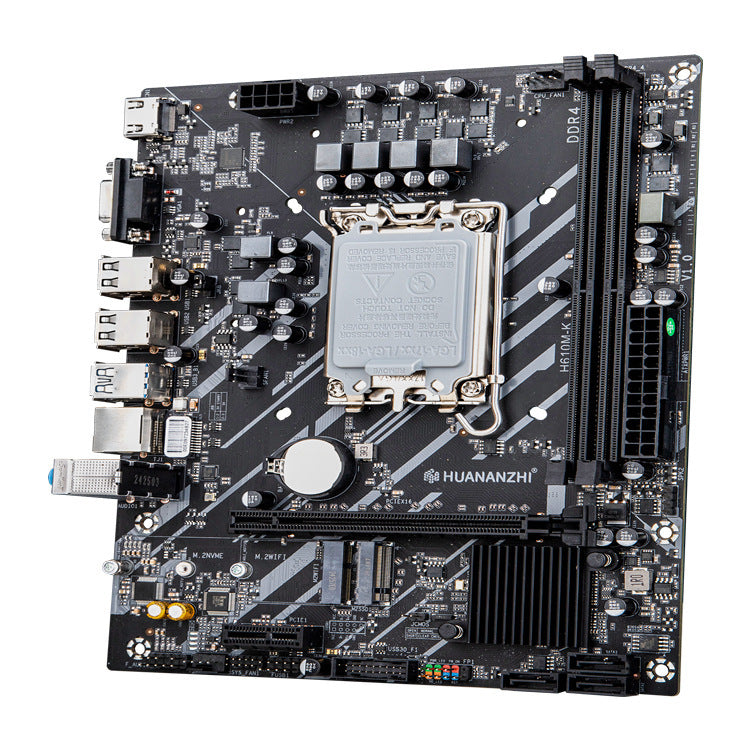

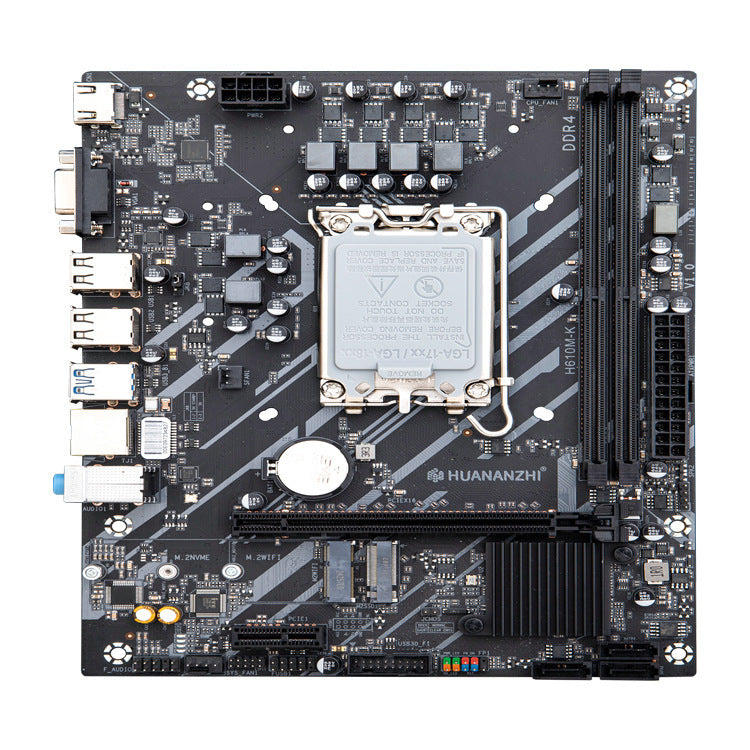

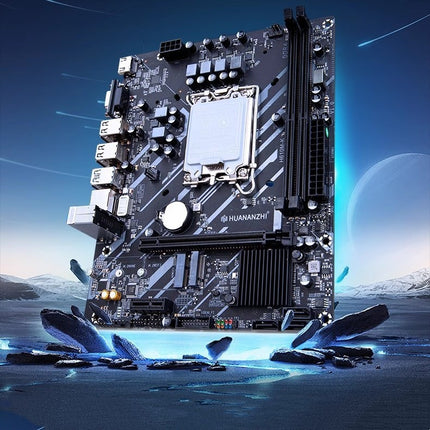

Product Image:
