PC Motherboards

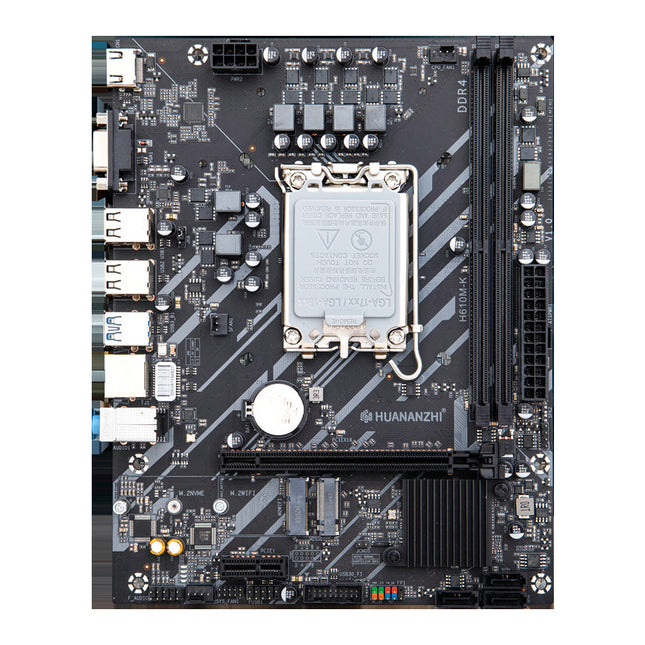

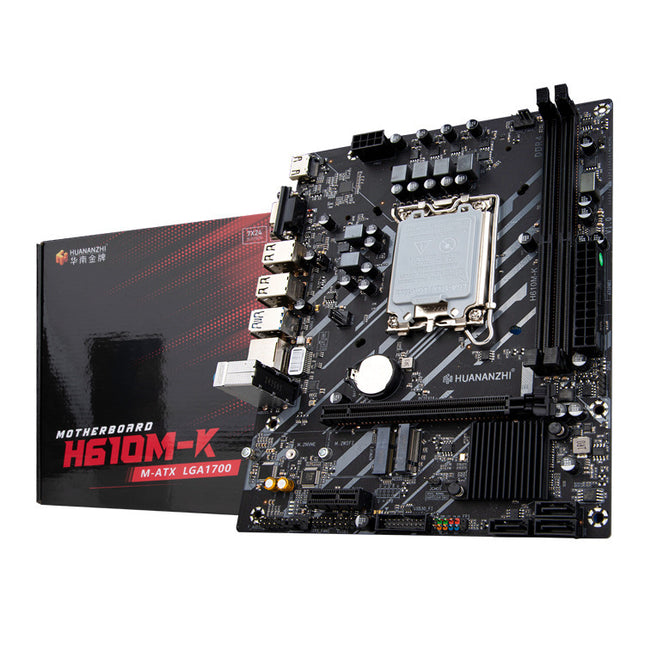

Product information: Mainboard model: South China H610M-K mainboard Chipset: IntelH610 series chipset CPU pin: supports LGA1700 platform processors and Intel12/13/14 generation Core processors. Memory slots: 2 DDR4 memory slots Memory Standard: supports dual-channel DDR4/2933/2666/2133MHz memory (supports XMP depending on CPU) up to 64GB Storage interface: 3 SATA3.0 6Gbps hard disk interfaces Expansion Slot: 1 PCI Express4.0 x16 slot, 1 PCI Express3.0 x1 slot Expansion interface: 1 M.2 2280 NVME PCIE X4 3.0 32Gb/s ,1 M.2 WIFI support CNVi protocol On-board sound card: Ruiqi high fidelity audio ALC897 On-board Nic: Ruiqi Gigabit Nic RTL8111H Power Interface: 24PIN 8PIN Fan pin: 1 CPU_FAN pin, 2 SYS_FAN pin Number of power supply phases: 6-phase power supply PCB layers: 4 layers Motherboard specification: 215 * 165MM M-ATX plate type Rear panel interface: 2 USB3.2 5Gbps ,4 USB2.0 480Mbps, 1 HDMI 2.0 interface 1 VGA interface, 1 RJ45 network interface, 1 3-hole audio interface Front panel interface: 1 group USB2.0 480Mbps pin, 1 set USB3.2 5Gbps pin, 1 set of front audio pin, 1 set of Debug debugging lights pin, 1 set of CMOS pin, 1 set of buzzer, 1 set of TPM 12-1 pin 1 group of CMOS pin, 1 group of buzzer pin, 1 group of boot restart pin Support system: Windows10 Windows11 support incoming call startup/scheduled startup/network wake-up/Nic startup BIOS:AMI UEFI BIOS graphics Packing list: 1 SATA hard drive data cable, 1 product manual, 1 motherboard blank, 1 motherboard Product Image:

Read more less

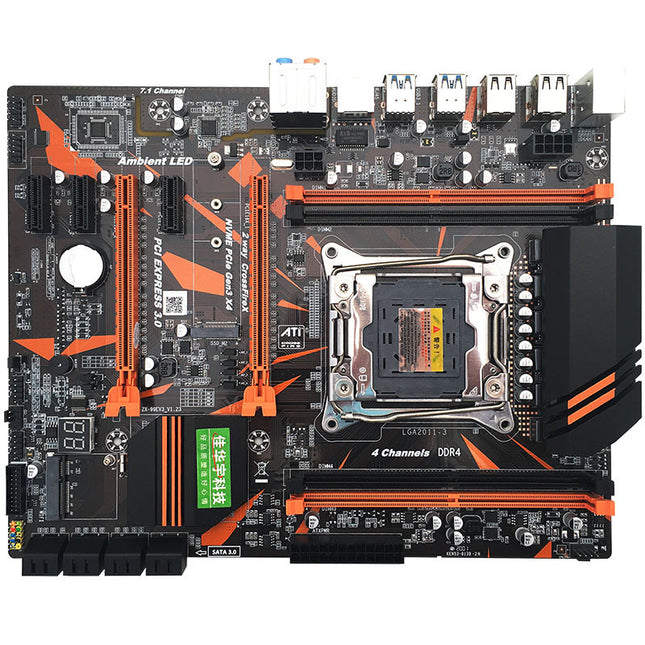

Motherboard chip: Integrated sound card / network card main chipset inte1 x99 series Audio chip integrated with 7.1 channel sound effect chip Network card chip integrated rtl8111h gigabit network card Processor specification: CPU slot LGA 2011-3 CPU type: 2011-v3 at the beginning of 58 or 6869 of Zhiqiang series (e.g. 5820k 5960k) And i7 series (i7 CPU cannot be used with server memory module at the same time) Memory specification: Memory type DDR4 2400 / 2333mhz (reg ECC or ordinary desktop memory) Memory slot 4 x DDR4 DIMM The memory capacity can reach 4 * 32g Expansion slot: 2X PCI-E x16 video card slot 3xpci-e X1 slot 2xusb2.0 slot (1 set) 2x USB3.0 interface (1 set) 8xsata3.0 interface 1 x m.2 PCIe nvme high speed hard disk interface (full speed 1 / 0 interface: PS / 2 interface PS / 2 keyboard mouse universal interface 1xrj45 network interface X USB2.0 interface 4x USB3.0 interface 7.1 channel audio interface Other parameters: One 8-pin power socket (rely on the main power supply when only 4-pin is connected) and a 24 pin power interface 4 power supply modes With digital fault diagnosis display and buzzer WiFi interface, 8LED color audio lamp Warranty information: Warranty policy shop or manufacturer Three Guarantees service The warranty period is 3 years (free of charge for one year and cost maintenance for the next two years) Important reminder: The color of the slot bottom plate may be different from each batch, and the products are continuously optimized and upgraded, If there is any detail adjustment, the page introduction is not updated in time, please understand!

Read more less

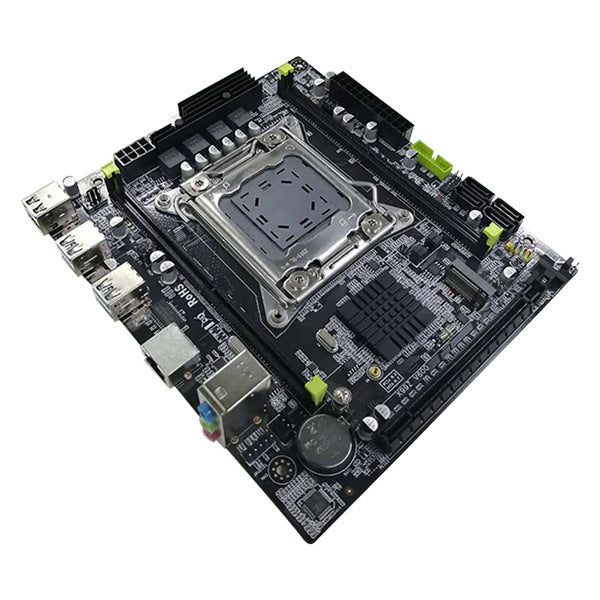

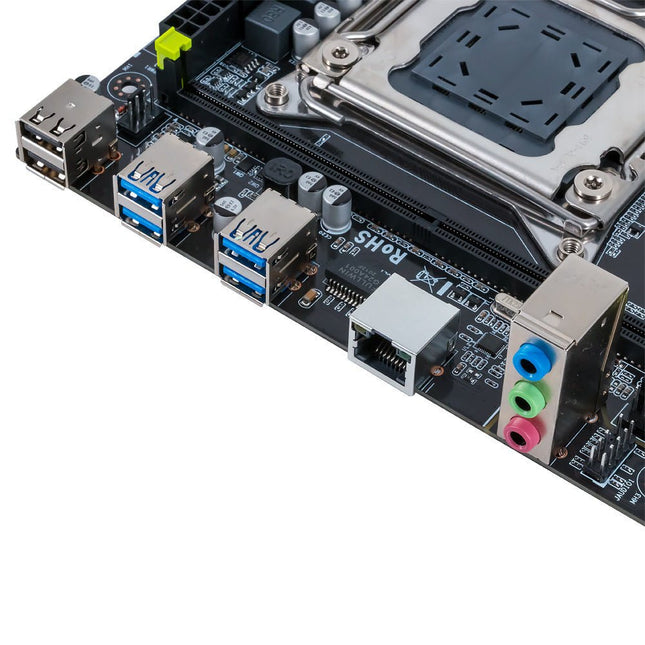

Product Information: Applicable type: desktop Motherboard architecture: M-ATX CPU socket type: LGA 2011-3 Support CPU type: 2011 pin V3 V4CPU Onboard network card: there is an onboard network card Graphics card: Discrete graphics card Support graphics card standard: 1*PCI Express 16X Support memory type: DDR4 Hard disk interface: SATA III Number of USB ports: 8 Colour: Black Packing list: Computer motherboard * 1

Read more less
